Product
Gothic type tunnel green house with ventilation system
Company Profile
Chengfei Greenhouse is a manufacturer with a history of more than 25 years and rich experience in design and manufacturing. At the beginning of 2021, we established an overseas marketing department. At present, our greenhouse products have been exported to Europe, Africa, Southeast Asia and Central Asia. Our goal is to return the greenhouse to its essence, create value for agriculture, and help our customers increase crop yields.
Product Highlights
1. Simple and economical structure, easy assembly and low cost
2. Flexible structure, strong applicability and wide application range
3. No foundation required
4. High quality steel
5. High quality lock channel
6. High quality hot dip galvanized
Product Features
1. Simple and economical structure
2. Easy to assemble and low cost
3. Flexible structure, strong applicability and wide application range
Application

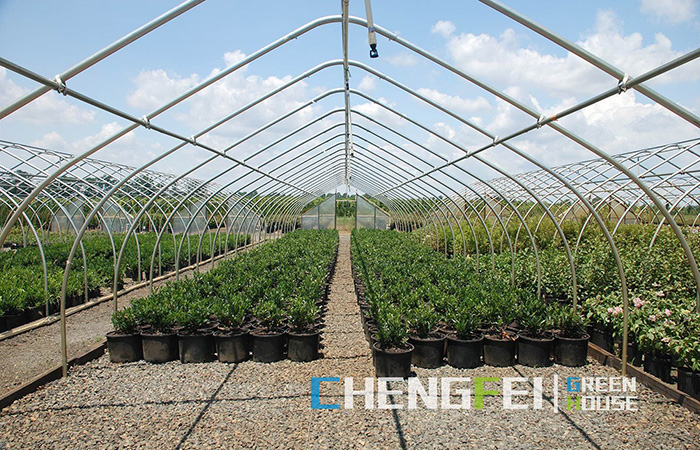

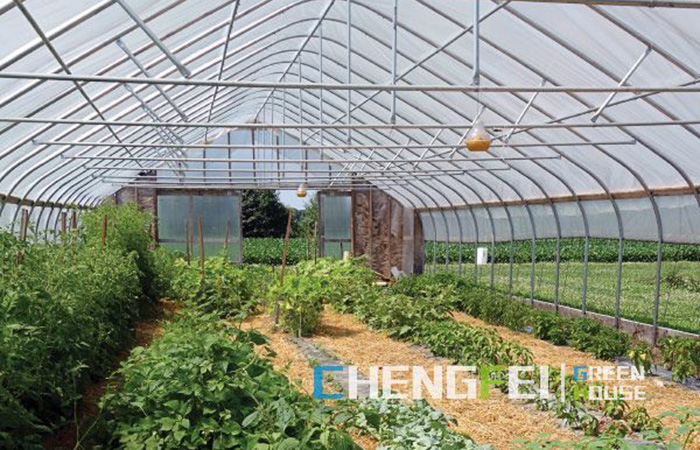

The greenhouse is usually used for the primary cultivation of crops such as vegetables, seedlings, flowers and fruits.
Product Parameters
| Greenhouse size | |||||||
| Items | Width (m) | Length (m) | Shoulder height (m) | Arch spacing (m) | Covering film thickness | ||
| Regular type | 8 | 15~60 | 1.8 | 1.33 | 80 Micron | ||
| Customized type | 6~10 | ＜10；＞100 | 2~2.5 | 0.7~1 | 100~200 Micron | ||
| Skeleton specification selection | |||||||
| Regular type | Hot-dip galvanized steel pipes | ø25 | Round tube | ||||
| Customized type | Hot-dip galvanized steel pipes | ø20~ø42 | Round tube,Moment tube, ellipse tube | ||||
| Optional supporting system | |||||||
| Regular type | 2 sides ventilation | Irrigation system | |||||
| Customized type | Extra supporting brace | Double layer structure | |||||
| heat preservation system | Irrigation system | ||||||
| Exhaust fans | Shading system | ||||||

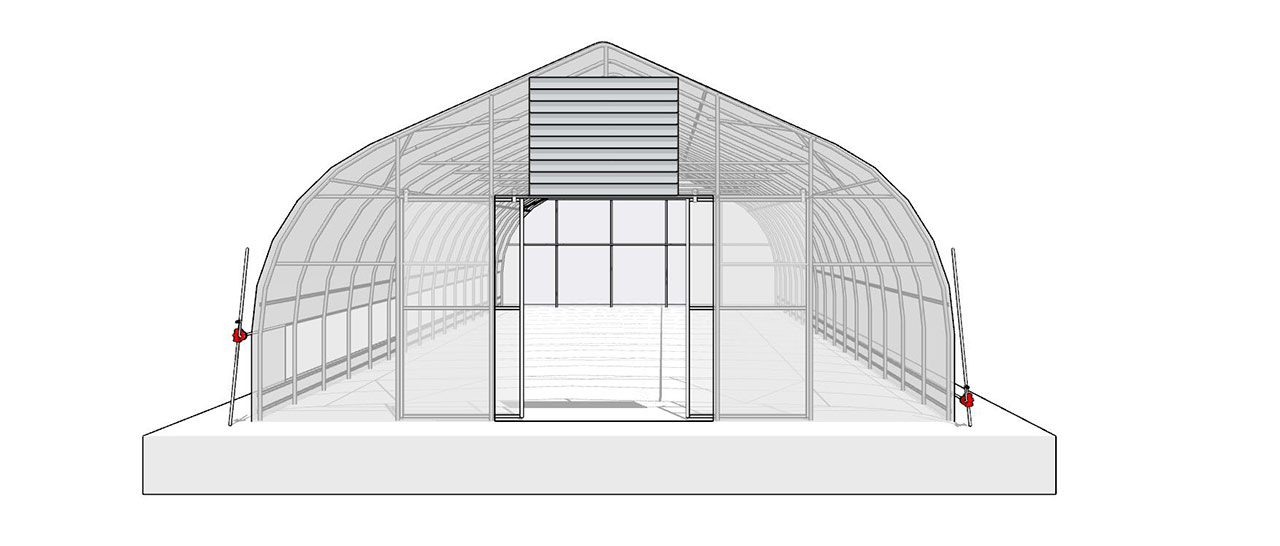

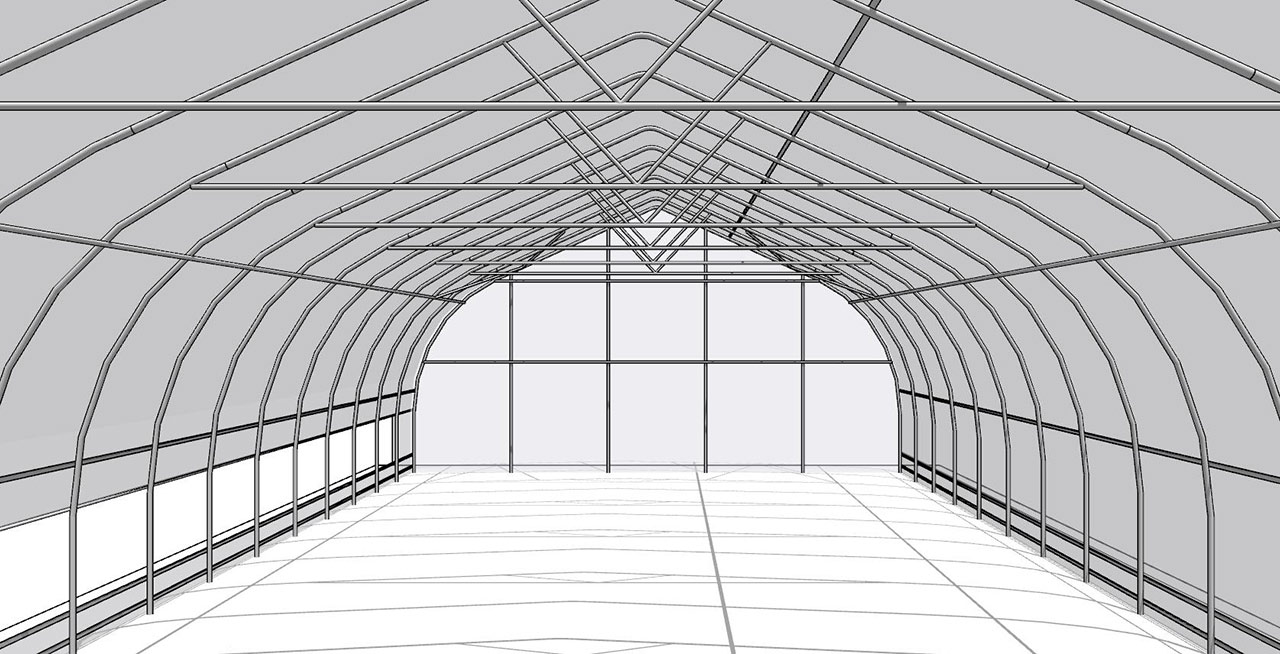

Product Structure
FAQ
1.What’s the difference between the regular tunnel greenhouse and gothic tunnel greenhouse?
The difference lies in the tilting Angle of the roof of the greenhouse and the specification of the skeleton material.
2.Do you have your own brand?
Yes, we have ‘Chengfei Greenhouse’ this brand.
3.Which kind of payment ways do you have?
● For domestic market: Payment on delivery/on project schedule
● For overseas market: T/T, L/C, and alibaba trade assurance.
4.How did your guests find your company?
We have 65% clients recommended by the clients that have a cooperation with my company before. Others comes from our official website, e-commerce platforms, and project bid.
