Single-span plastic greenhouse price
Company Profile
After 25 years of development, Chengdu Chengfei Greenhouse has achieved professional operation and is divided into business departments such as R&D and design, park planning, construction and installation, and planting technical services. With advanced business philosophy, scientific management methods, leading construction technology and experienced construction team, a large number of high-quality projects have been built all over the world, and a good corporate image has been established.
Product Highlights
1.All types of greenhouse have simple structure and easy in installation and maintaining.
2.Excellent hot galvanized steel structures and accessories , anti-corrosion . 15 year using life .
3.Proprietary technology in PE film , Famous brand .thinner more durable.Guaranteed 5 years using life.
4. Ventilation and insect nets can give your planting under comfortable situation. Increasing yield.
5. Cucumbers, tomatoes, yield per 1000㎡ normally more than 10000kg.
Product Features
1.Simple structure
2.Low cost
3.Beautiful apperance
4.Convenient operation
Application

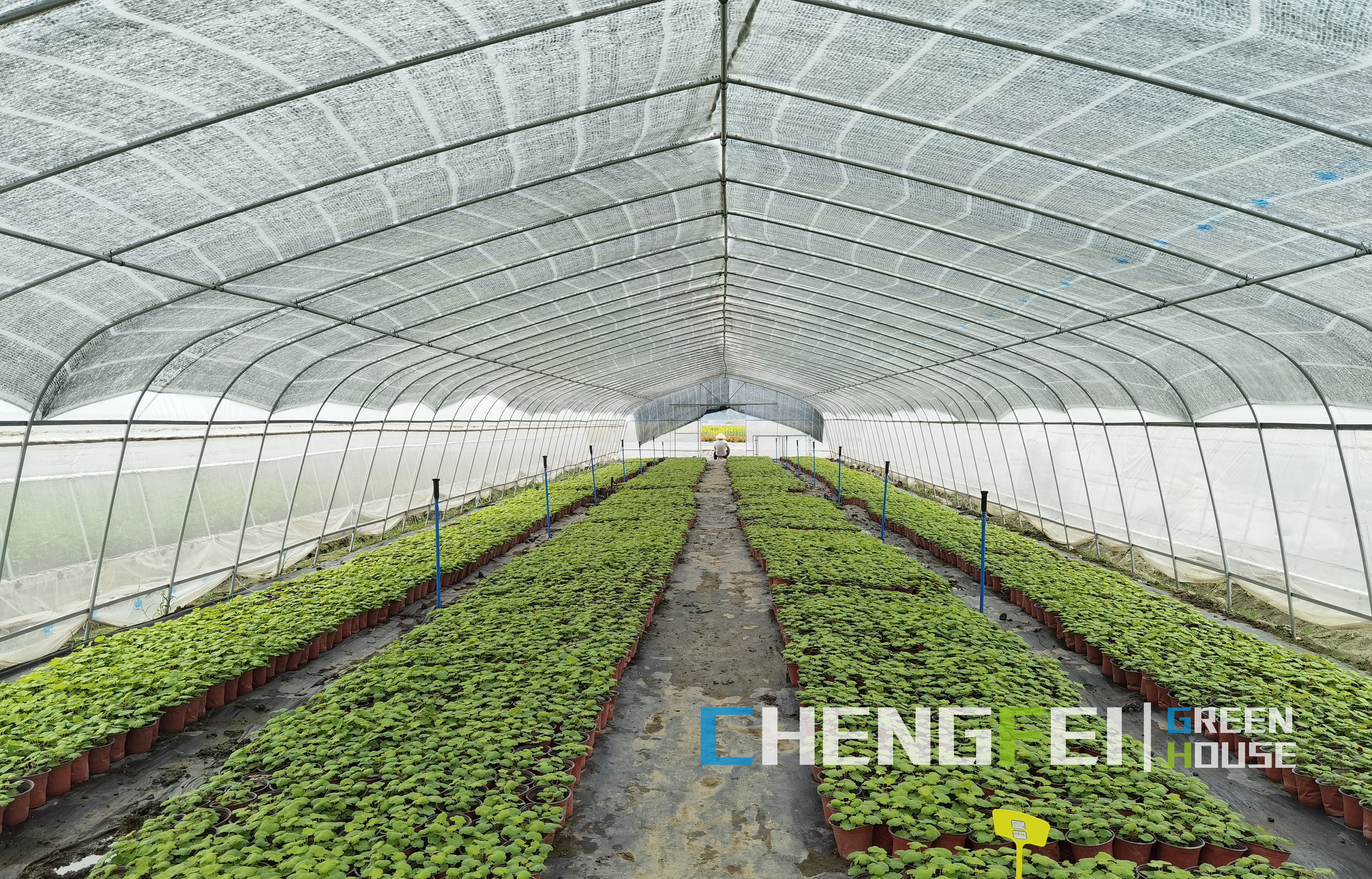

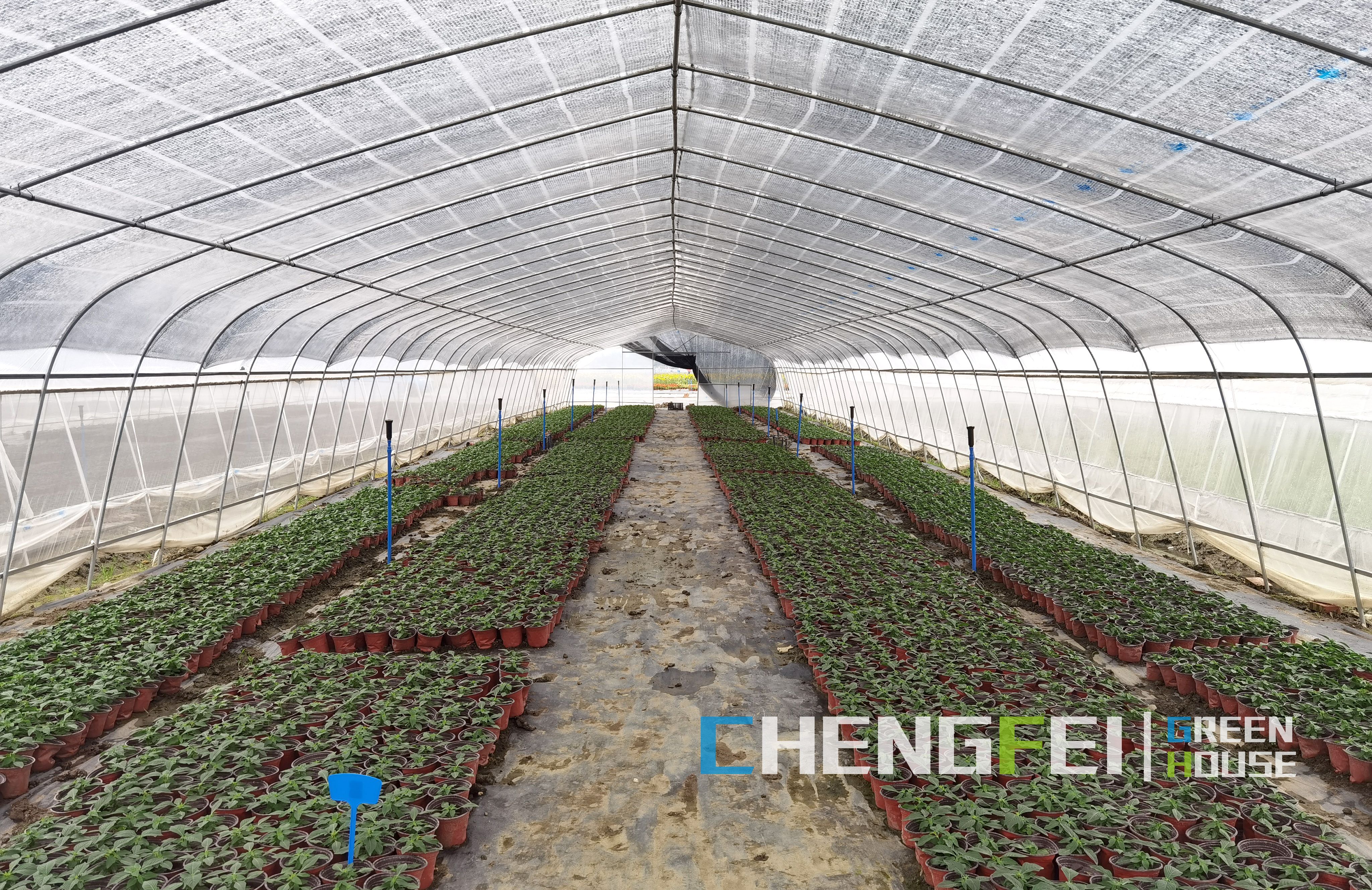

Single span plastic tunnel greenhouse is widely used in the cultivation of tomato,vegetables, fruits and flowers.
Product Parameters
| Greenhouse size | |||||||
| Items | Width (m) | Length (m) | Shoulder height (m) | Arch spacing (m) | Covering film thickness | ||
| Regular type | 8 | 15~60 | 1.8 | 1.33 | 80 Micron | ||
| Customized type | 6~10 | ＜10；＞100 | 2~2.5 | 0.7~1 | 100~200 Micron | ||
| Skeleton specification selection | |||||||
| Regular type | Hot-dip galvanized steel pipes | ø25 | Round tube | ||||
| Customized type | Hot-dip galvanized steel pipes | ø20~ø42 | Round tube,Moment tube, ellipse tube | ||||
| Optional supporting system | |||||||
| Regular type | 2 sides ventilation | Irrigation system | |||||
| Customized type | Extra supporting brace | Double layer structure | |||||
| heat preservation system | Irrigation system | ||||||
| Exhaust fans | Shading system | ||||||

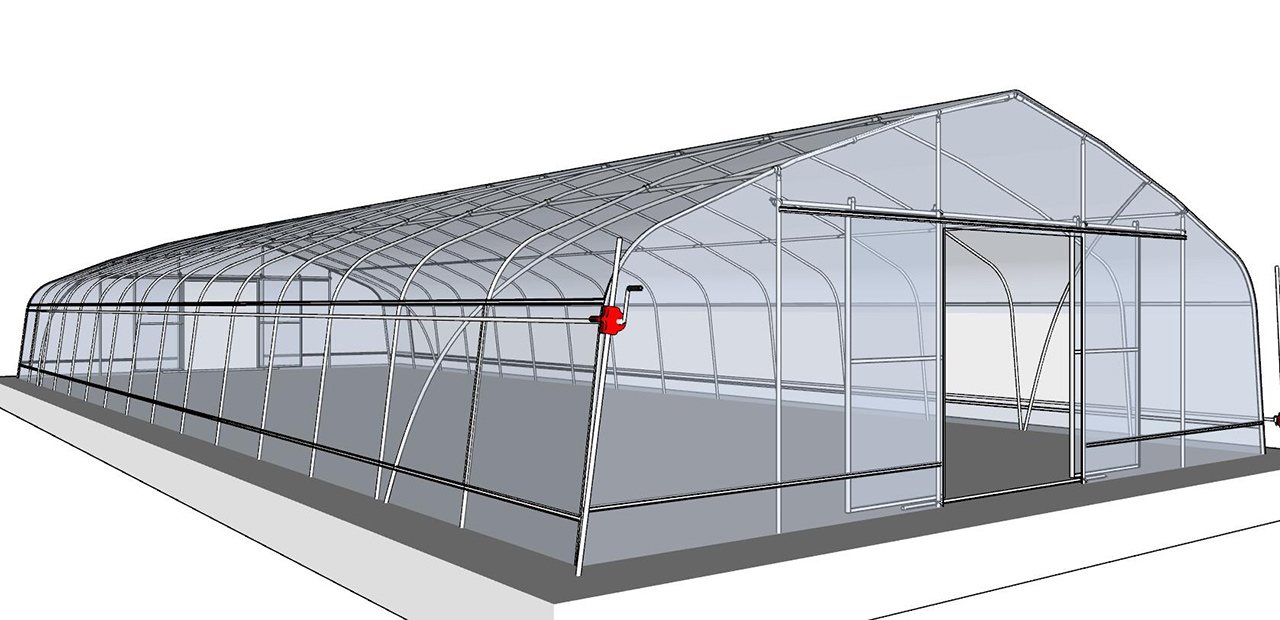

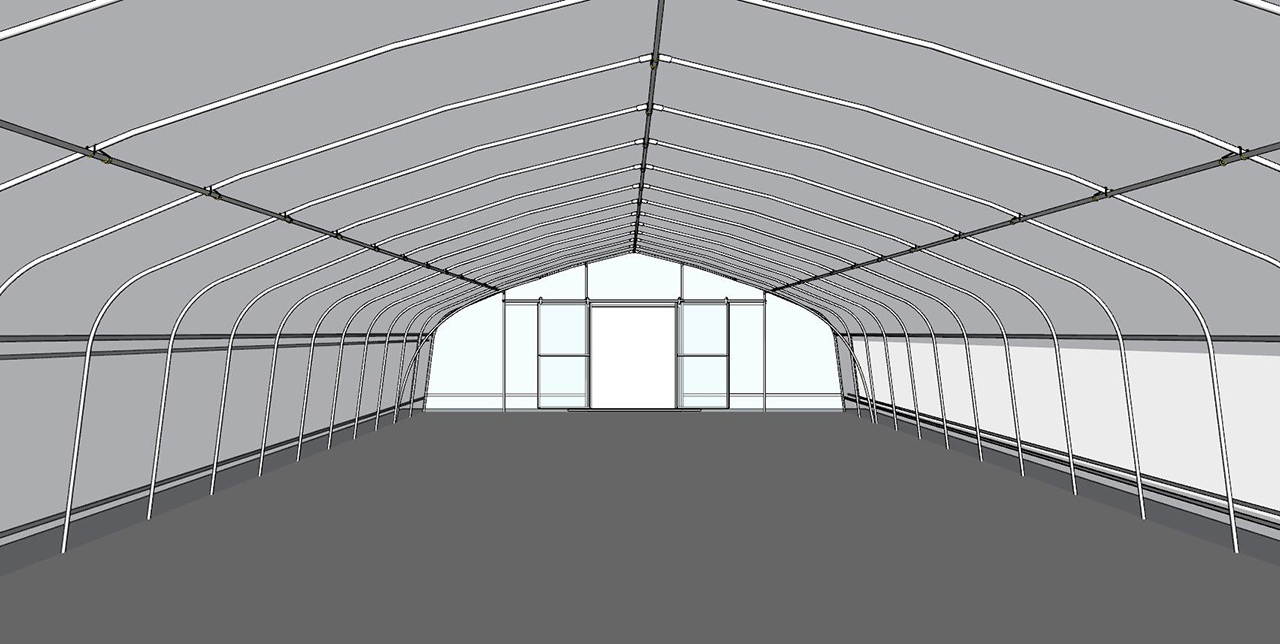

Product Structure
FAQ
1.What technical indicators do your products have?
● Hanging weight: 0.15KN/M2
● Snow Load: 0.15KN/M2
● 0.2KN/M2 Greenhouse load: 0.2KN/M2
2.What principle is the appearance of your products designed on?
Our earliest greenhouse structures were mainly used in the design of Dutch greenhouses.After years of continuous research and development and practice,our company has improved the overall structure to adapt to different regional environments,altitude,temperature,climate,light and different crop needs and other factors as one Chinese greenhouse.
3.What are the advantages?
Our greenhouse products are mainly divided into several parts,skeleton,covering,sealing and supporting system.All components are designed with fastener connection process, processed in the factory and assembled on site at one time, with recombinable.It’s easy to return farmland to forest in the future.The product is made of hot-dip galvanized material for 25 years of anti-rust coating,and can be reused continuously.
4.How long does your mold development take?
● If you have ready-made drawings, our mold development time is about 15~20 days.
● If you need a new special design,then we need time to calculate the load,damage experiments,make samples,practical applications and other processes,then the time is estimated to be about three months.Because we need to ensure the quality of our products.
5.Which type of products do you have?
Totally speaking, we have 3 parts of products. The first is for greenhouse, the second is for greenhouse’s supporting system, the third is for greenhouse accessories. We can do one-stop business for you in greenhouse field.
