Product
Agricultural film greenhouse with ventilation system
Company Profile
Located in southwest China, after more than 20 years of development, Chengfei greenhouse has a standard production process, perfect quality control system, and professional technical personnel. Try to return the greenhouse to its essence and create value for agriculture.
Product Highlights
Agricultural film greenhouse with ventilation system belongs to customized service. Clients can choose different ventilation ways according to their demands, such as two sides ventilation, surrounding ventilation, and top ventilation. At the same time, you can also customize its size, such as width, length, height, etc.
Product Features
1. Large inside space
2. Special agricultural greenhouse
3. Easy mounting
4. Good airflow
Application

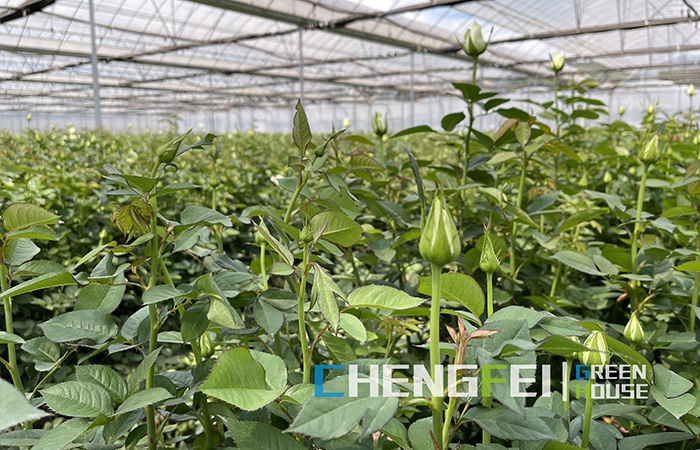

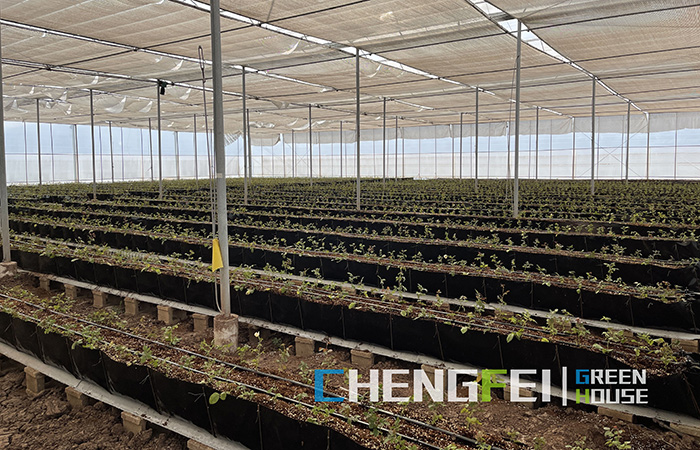

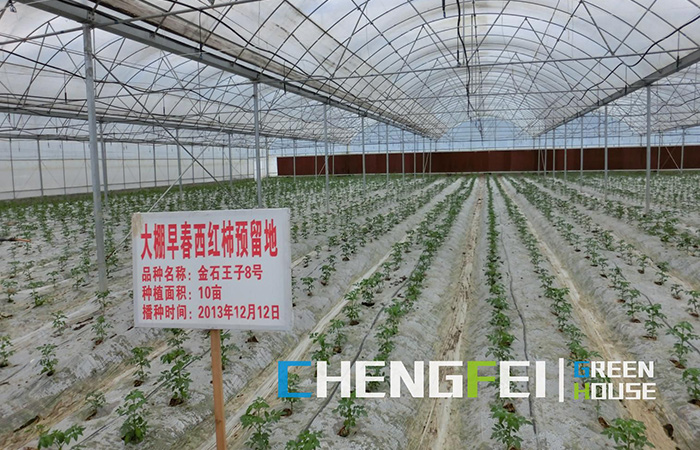

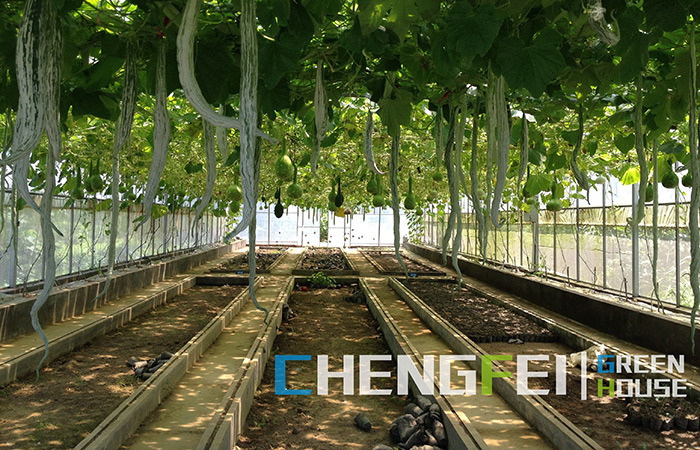

The application scenario of the agricultural film greenhouse with a ventilation system is usually used in agriculture, such as cultivating flowers, fruits, vegetables, herbs, and seedlings.
Product Parameters
| Greenhouse size | |||||
| Span width (m） | Length (m) | Shoulder height (m) | Section length (m) | Covering film thickness | |
| 6~9.6 | 20~60 | 2.5~6 | 4 | 80~200 Micron | |
| Skeleton specification selection | |||||
|
Hot-dip galvanized steel pipes |
口70*50、口100*50、口50*30、口50*50、φ25-φ48,etc |
||||
| Optional Supporting systems | |||||
|
Cooling system Cultivation system Ventilation system Fog system Internal & external shading system Irrigation system Intelligent control system Heating system Lighting system |
|||||
|
Hung heavy parameters：0.15KN/㎡ Snow load parameters：0.25KN/㎡ load parameter：0.25KN/㎡ |
|||||
Optional Supporting System
Cooling system
Cultivation system
Ventilation system
Fog system
Internal & external shading system
Irrigation system
Intelligent control system
Heating system
Lighting system

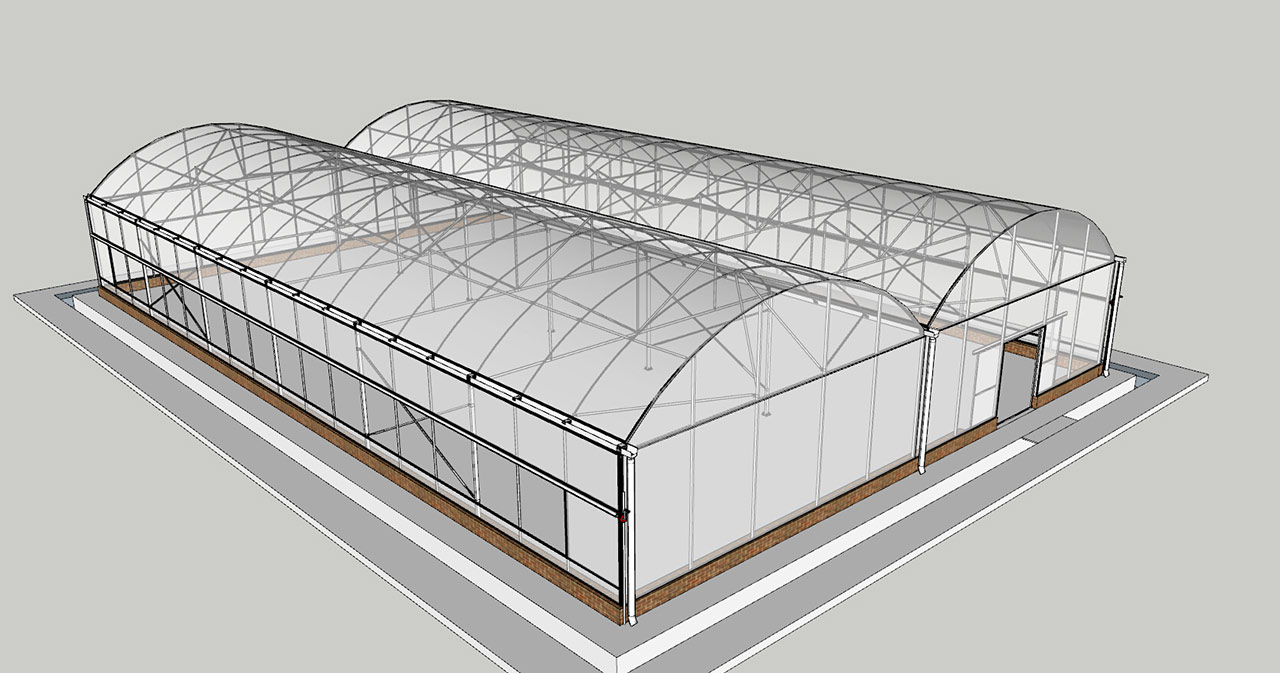

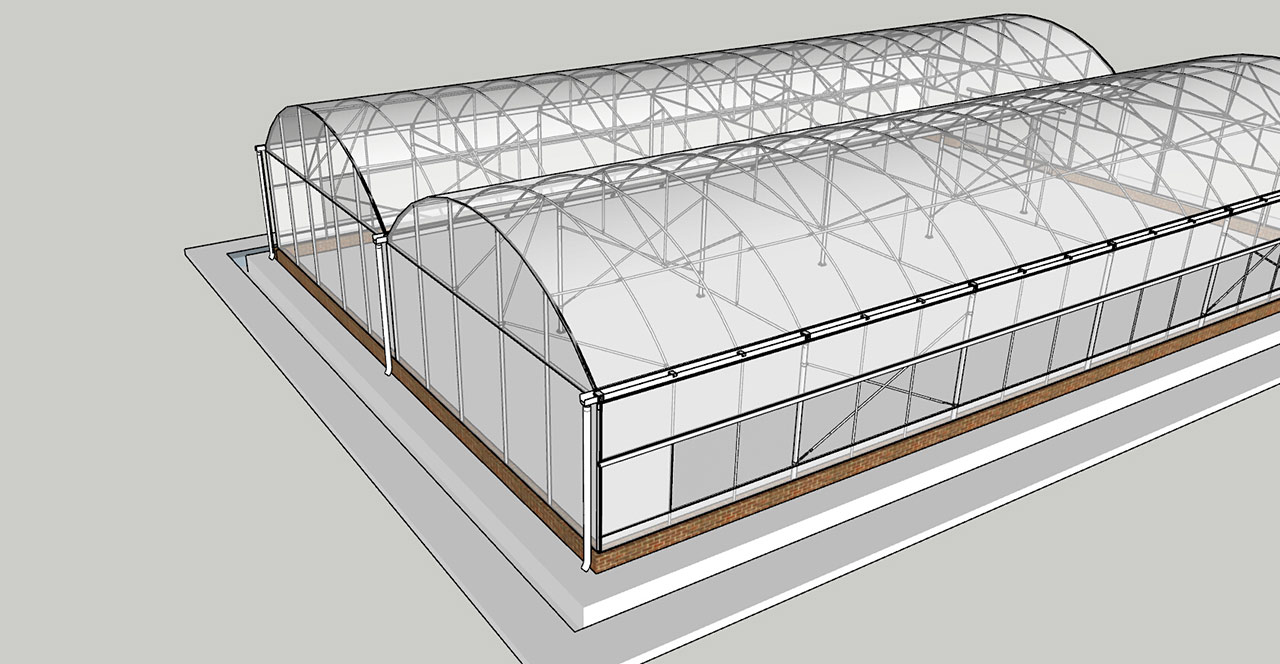

Product Structure
FAQ
1. For this type of greenhouse, how thick is the film generally chosen?
Generally speaking, we choose 200 Micron PE film as its covering material. If your crop has special demands for this covering material, we can also offer 80-200 Micron film for your choosing.
2. What do you usually include in your ventilation system?
For general configuration, the ventilation system involves a cooling pad and exhaust fan;
For upgrade configuration, the ventilation system includes a cooling pad, exhaust fan, and recirculation fan.
3. What other supporting systems can I add?
You can add relevant supporting systems into this greenhouse according to your crops' demands.emands.
