Product
Multi-span plastic film greenhouse with ventilation system
Company Profile
Chengdu Chengfei greenhouse has more than 25 years of history in the greenhouse field, which makes us possess a complete greenhouse chain and can offer you a one-stop service in the greenhouse field.
Product Highlights
Multi-span plastic film greenhouse with ventilation system belongs to customized service. Clients can choose different ventilation ways according to their demands, such as two sides ventilation, surrounding ventilation, and top ventilation. At the same time, you can also customize its size, such as width, length, height, etc.
Product Features
1. Good ventilation effect
2. High space utilization
3. longer using life
4. High-cost performance
Application

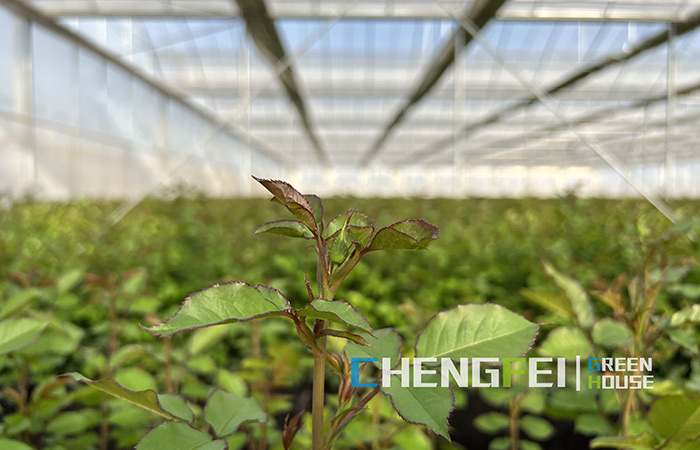

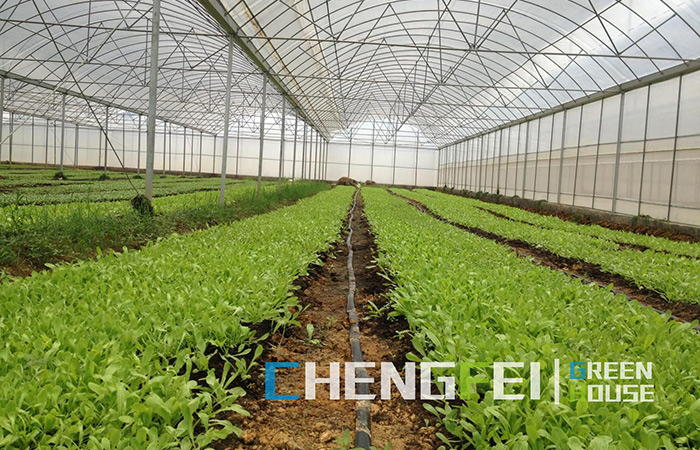

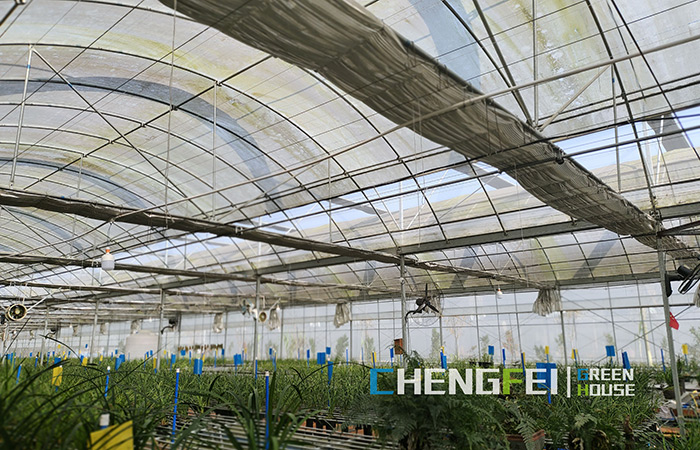

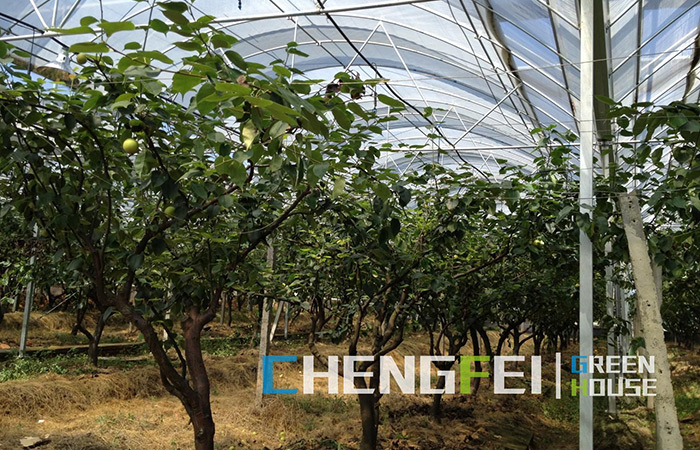

Most application scenarios for multi-span plastic film greenhouse with ventilation system are used in the agricultural field, such as planting vegetables, fruits, flowers, seedlings, and herbs.
Product Parameters
| Greenhouse size | |||||
| Span width (m） | Length (m) | Shoulder height (m) | Section length (m) | Covering film thickness | |
| 6~9.6 | 20~60 | 2.5~6 | 4 | 80~200 Micron | |
| Skeleton specification selection | |||||
|
Hot-dip galvanized steel pipes |
口70*50、口100*50、口50*30、口50*50、φ25-φ48,etc |
||||
| Optional Supporting systems | |||||
|
Cooling system Cultivation system Ventilation system Fog system Internal & external shading system Irrigation system Intelligent control system Heating system Lighting system |
|||||
|
Hung heavy parameters：0.15KN/㎡ Snow load parameters：0.25KN/㎡ load parameter：0.25KN/㎡ |
|||||
Optional Supporting System
Cooling system
Cultivation system
Ventilation system
Fog system
Internal & external shading system
Irrigation system
Intelligent control system
Heating system
Lighting system

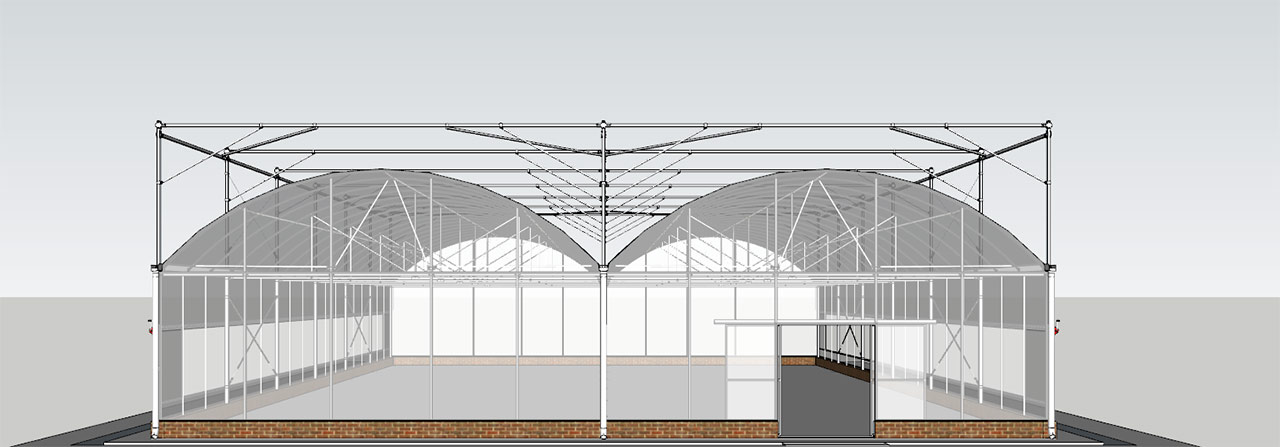

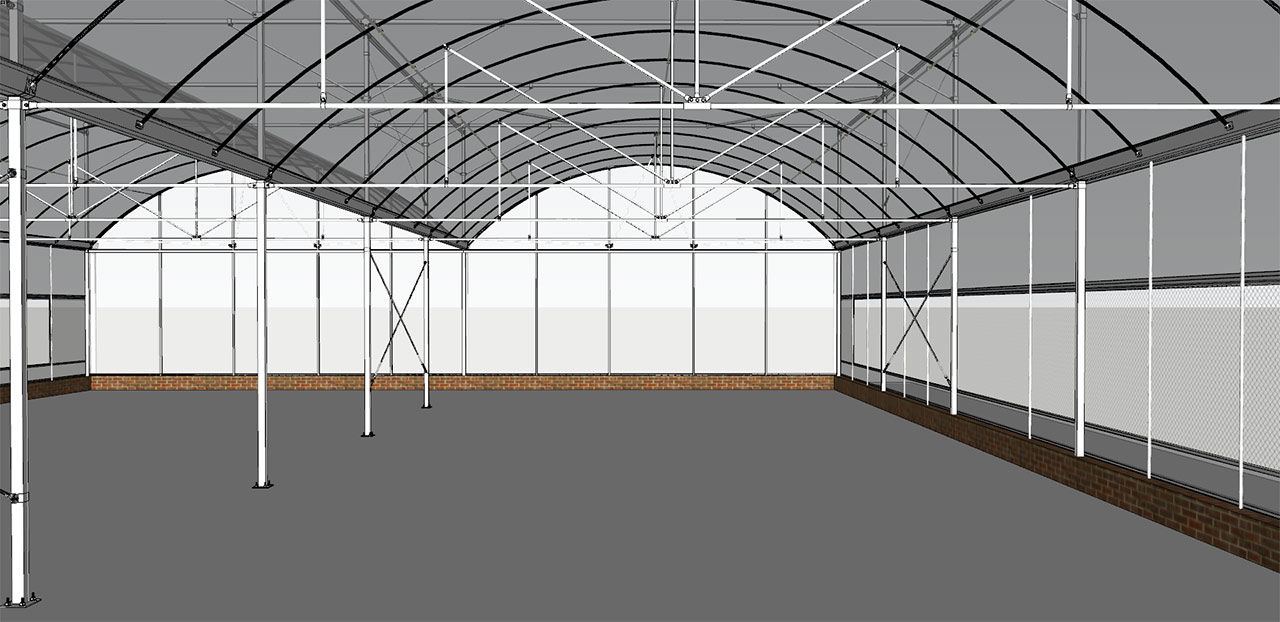

Product Structure
FAQ
1. What’s your advantage in the greenhouse field?
Firstly, we have a complete greenhouse raw material supply chain, which makes our greenhouse have price competitive in the market.
Secondly, we have more than 25 years experience in greenhouse manufacturing and design, which makes many proper scheme for you.
Thirdly, modular combined structure design, the overall design, and installation cycle is 1.5 times faster than the previous year, Perfect process flow, advanced production line yield rate as high as 97%.
2. Can you offer a guide on installation?
Yes, we can. We can support an online or offline installation guide as per your demands.
3.What types of ventilation fans do you have?
We usually use 900 type or 1380 type fans according the greenhouse area.
