Product
Multi-span corrugated polycarbonate greenhouse
Company Profile
Chengdu Chengfei greenhouse has a complete product system, a mature foreign trade team, a professional design team, and support customer customization, to provide customers with the most appropriate products. In addition, we have 25 years of production experience and many years of experience in foreign trade.
Product Highlights
Light transmittance is high and uniform, Long life and high strength, Strong corrosion resistance and fire resistance, Good heat preservation performance, and Modern and elegant design.
Product Features
1. heat preservation and insulation
2. Aesthetics
3. Not easily damaged in transit
Application

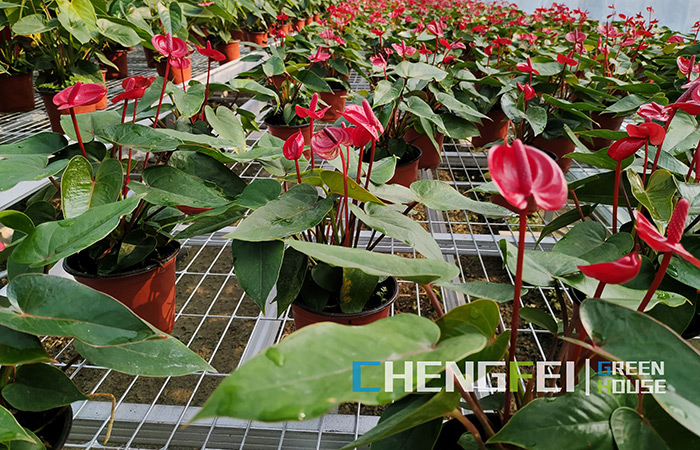

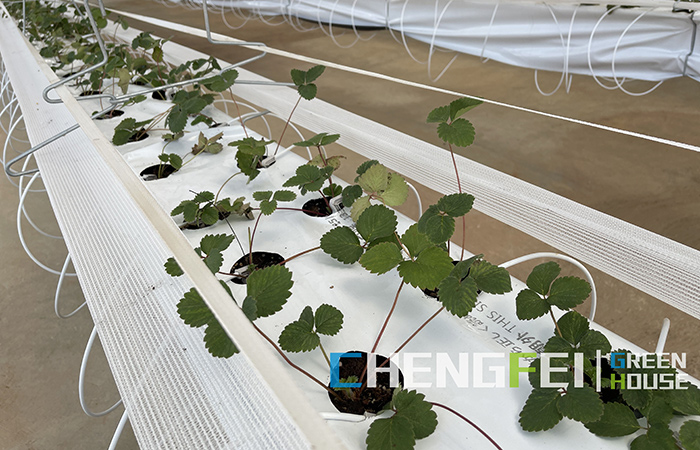

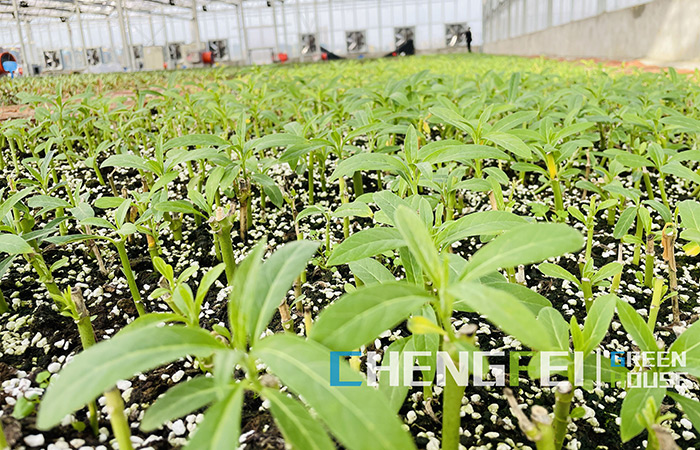

It can be used for dwarf fruit tree seedlings, planting, aquaculture and animal husbandry, exhibitions, ecological restaurants, and teaching and research.
Product Parameters
| Greenhouse size | ||||
|
Span width (m） |
Length (m) |
Shoulder height (m) |
Section length (m) |
Covering film thickness |
| 9~16 | 30~100 | 4~8 | 4~8 | 8~20 Hollow/three-layer/multi-layer/honeycomb board |
| Skeleton specification selection | ||||
|
Hot-dip galvanized steel tubes |
口150*150、口120*60、口120*120、口70*50、口50*50、口50*30，口60*60、口70*50、口40*20，φ25-φ48,etc. | |||
| Optional system | ||||

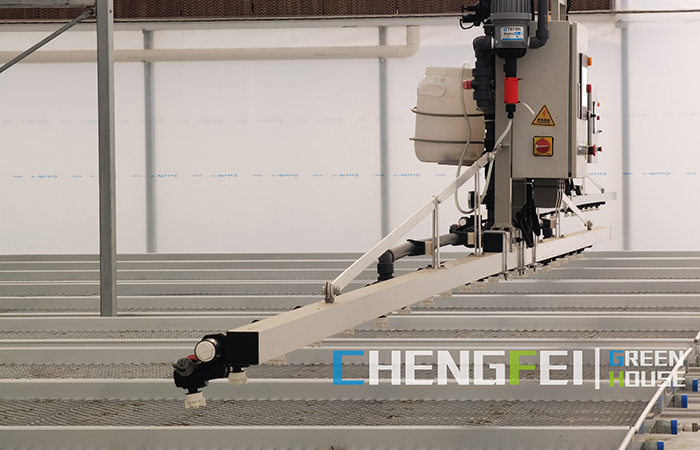

| Ventilation system, Top ventilation system, Shading system, Cooling system, Seedbed system, Irrigation system, Heating system, Intelligent control system, Light deprivation system | ||||
|
Hung heavy parameters：0.27KN/㎡ Snow load parameters：0.30KN/㎡ Load parameter：0.25KN/㎡ |
||||

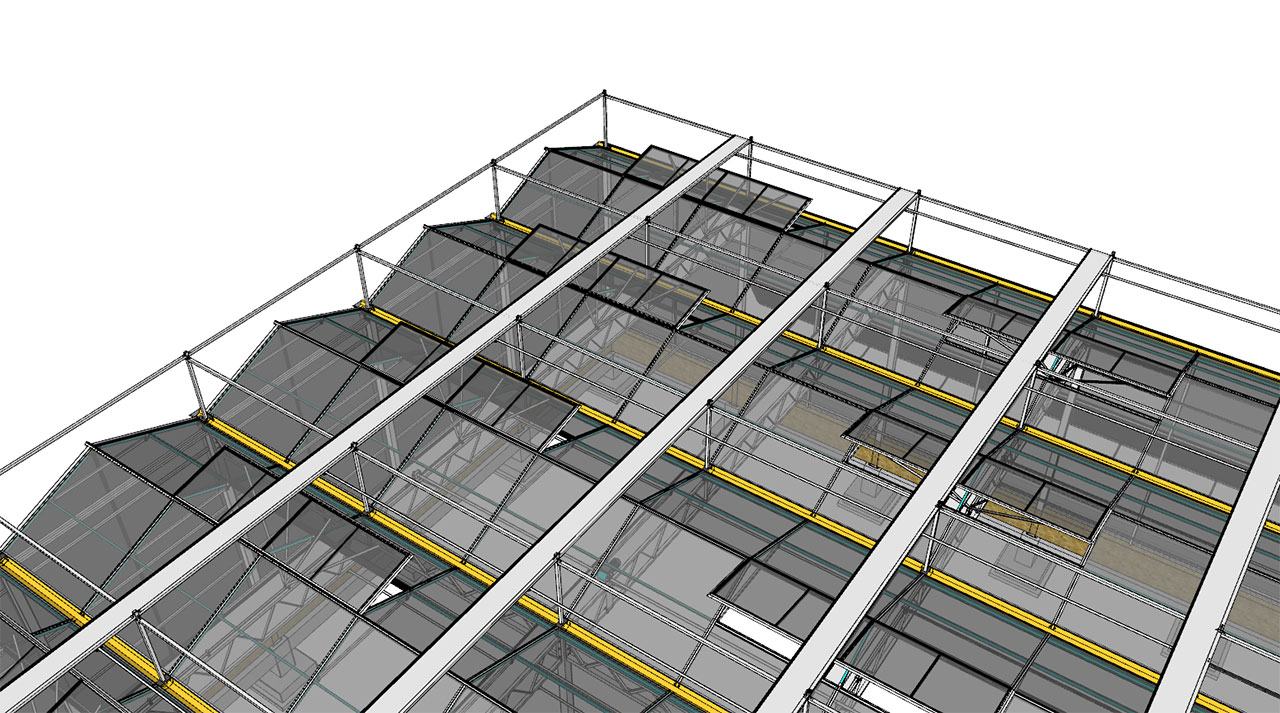

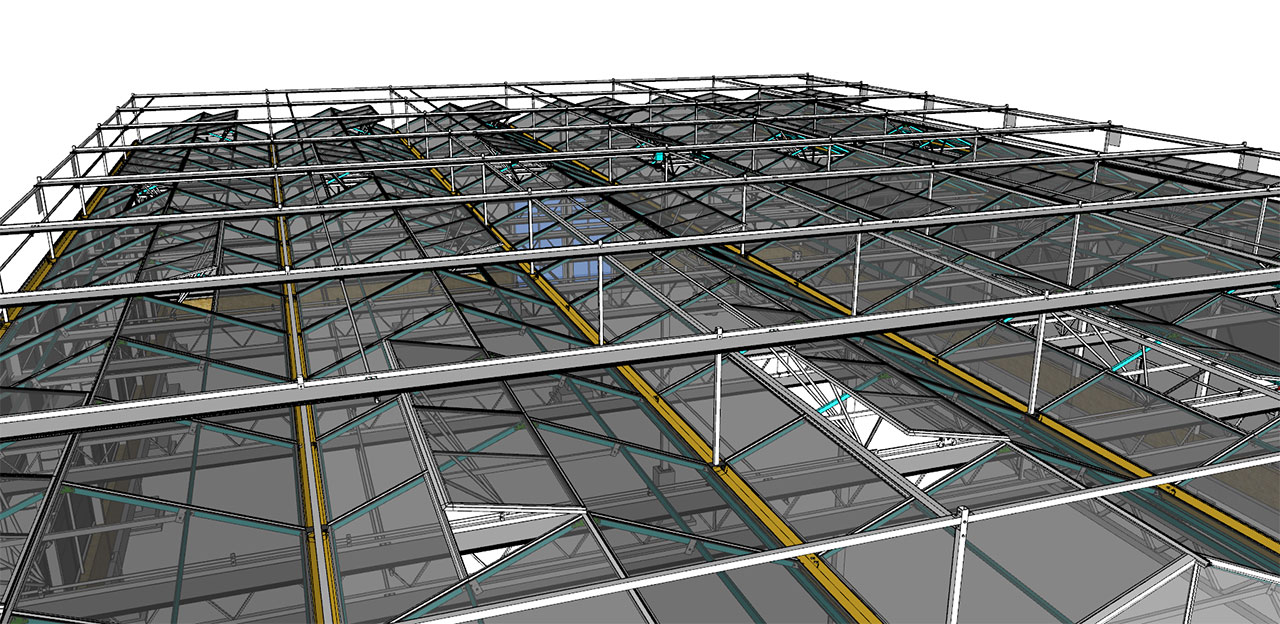

Product Structure
Optional System
Ventilation system, Top ventilation system, Shading system, Cooling system, Seedbed system, Irrigation system, Heating system, Intelligent control system, Light deprivation system
FAQ
1. Which payment ways can you support?
Generally speaking, we can support bank T/T and L/C at sight.
2. What kind of materials for greenhouse structures?
Hot-dip galvanized steel pipe, its zinc layer can reach around 220g/m2 and it has a good effect on anti-rust and anti-corrosion.
3. Can you offer a one-stop service in the greenhouse field?
Yes, we can. We have been specializing in the greenhouse area for many years since 1996 and know this market very well!
4. How to offer the installation service?
If you have the budget, we can dispatch the installation engineer to give you the site instruction. If you don’t have the budget, when you meet some problems in installation, we can host an online meeting to give you an installation guide.
