Imagine a farm where everything from watering and feeding to climate control happens without a constant human touch. Sounds like science fiction, right? Well, in the world of hydroponic greenhouses, it's the reality. These amazing structures aren't just about growing plants without soil; they're pioneers in automated agriculture, leveraging technology to create the perfect growing conditions around the clock. If you’re curious about how modern farming minimizes manual labor and maximizes efficiency, let's explore the intelligent systems that make a hydroponic greenhouse truly run itself.
The Brains Behind the Green: Core Technologies for Automation
At its heart, an automated hydroponic greenhouse is a symphony of sensors, software, and smart hardware working in harmony. It's about taking complex environmental control and making it effortless.
1. Sensing the Environment: The Greenhouse's "Eyes and Ears"
Automation begins with accurate data. A network of sophisticated sensors constantly monitors every critical parameter within the greenhouse. These are the "eyes and ears" that feed vital information to the control system.
Climate Sensors: Temperature and humidity sensors are everywhere. They detect not just the air temperature, but often the substrate temperature and even the leaf temperature of the plants. Relative humidity is crucial for plant transpiration and preventing diseases. Light sensors measure intensity (PAR, or Photosynthetically Active Radiation) and sometimes even specific light spectrums. CO2 sensors keep tabs on carbon dioxide levels, a key ingredient for photosynthesis.
Nutrient Solution Sensors: In hydroponics, the nutrient solution is life. pH sensors monitor the acidity or alkalinity of the water, ensuring nutrients are available for plant uptake. EC (Electrical Conductivity) sensors measure the total dissolved salts, indicating the concentration of nutrients. Dissolved oxygen sensors ensure roots are getting enough air, vital for preventing root rot.
Plant-Specific Sensors: More advanced setups might include sensors that monitor plant growth directly, like cameras that track leaf area expansion or specialized sensors measuring sap flow or chlorophyll content, giving even deeper insights into plant health.
This continuous stream of data creates a real-time snapshot of the growing environment, allowing the system to make informed decisions.
2. The Central Brain: Controllers and Software
All that sensor data needs a brain to process it and give commands. This is where the central control system comes in.
Programmable Logic Controllers (PLCs) & Computers: These are the workhorses. PLCs are industrial computers designed for automation, robust and reliable. They receive data from sensors and execute pre-programmed rules. For more complex greenhouses, a central computer running specialized greenhouse management software integrates all PLCs and devices. This software allows growers to set precise target values (set points) for every environmental factor, from temperature to nutrient concentration.
Algorithms and AI: Modern systems use sophisticated algorithms to fine-tune operations. They don't just react to thresholds; they learn and predict. Some incorporate artificial intelligence (AI) to analyze historical data, predict future needs (e.g., how much water will be needed tomorrow based on today's light levels), and even optimize growing recipes for specific crop varieties. This constant optimization minimizes resource use and maximizes yield.
User Interface: A user-friendly interface, typically on a computer screen or even a mobile app, allows growers to monitor everything remotely, adjust settings, and receive alerts. This means you can manage your greenhouse from anywhere, whether you're across the farm or across the globe. Imagine being able to check your lettuce farm's nutrient levels from your phone during a vacation!
3. Actuators: Making Things Happen
Sensors gather data, controllers make decisions, and actuators are the muscles that carry out the commands. They're the physical devices that adjust the greenhouse environment.

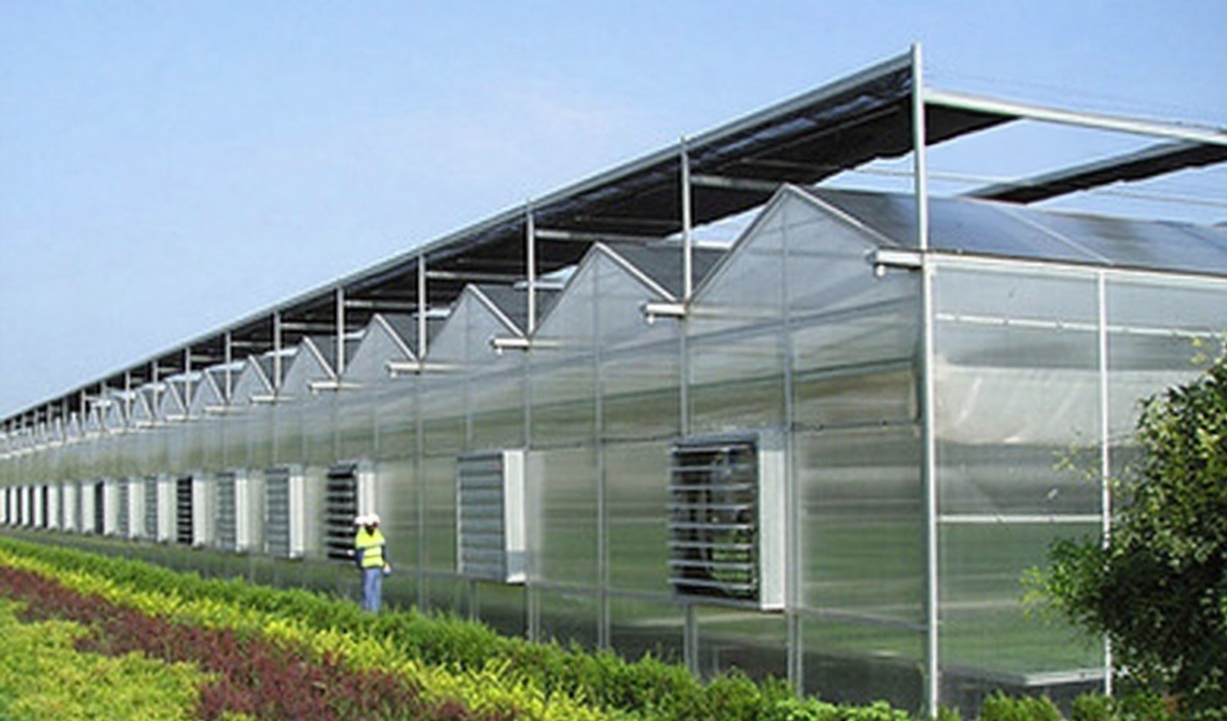

Ventilation Systems: Automated vents on the roof and sides open and close precisely to regulate temperature and humidity. Large circulation fans ensure air movement, preventing stagnant pockets and promoting even temperature distribution.
Heating and Cooling Systems: If temperatures drop, automated heaters (hot water pipes, air heaters, or even heat pumps) kick in. If it gets too hot, cooling systems like evaporative pads and fans activate. These systems maintain the perfect temperature range for your crops.
Shading and Lighting Systems: Automated shade screens unfurl to block excessive sunlight and conserve energy, while powerful LED grow lights switch on automatically during low-light periods or at night to extend the "daylight" hours for plants. The intensity and spectrum of these lights can often be precisely controlled to match crop needs.
Nutrient Dosing and Irrigation: Peristaltic pumps or solenoid valves precisely dose concentrated nutrient solutions into the irrigation water based on EC and pH readings. Automated pumps deliver the mixed solution through drip lines, NFT channels, or other hydroponic systems, ensuring plants get exactly the right amount of water and nutrients at the right time. This automated delivery drastically reduces labor and ensures optimal feeding.
CO2 Generators/Injectors: When CO2 levels are low, automated systems release CO2 into the greenhouse, either from compressed gas tanks or by burning natural gas, enriching the air for enhanced photosynthesis.
The Automated Workflow: A Day in the Life of a Smart Greenhouse
Let's walk through how these components work together in a typical automated hydroponic greenhouse.
Imagine dawn breaks over your automated greenhouse. Light sensors detect increasing sunlight, and the system begins to calculate the light intensity. As temperature sensors register the morning warm-up, the control system might initiate a gentle ventilation to prevent condensation.
As the day progresses, light levels increase. The system analyzes the light and determines if supplemental LEDs are needed, perhaps for a specific crop section that requires more intense light. If the greenhouse starts to get too warm, automated roof vents slowly open, allowing hot air to escape. Should humidity climb too high, circulation fans might increase speed or a dehumidifier might activate.
Throughout the day, pH and EC sensors in the nutrient reservoir are constantly monitored. If the pH drifts out of the optimal range (which is crucial for nutrient availability), dosing pumps automatically inject small amounts of acid or base to bring it back into balance. If the nutrient concentration drops, other pumps add more concentrated nutrient solutions.
At pre-programmed intervals or based on plant transpiration rates detected by sensors, the irrigation pumps deliver precisely measured amounts of nutrient solution to each plant or growing channel. This happens automatically, without a single person needing to walk through the rows with a watering can.
As evening approaches and light fades, the system might reduce ventilation, deploy thermal screens for insulation, and activate heating if temperatures are expected to drop overnight. The entire cycle is managed seamlessly by the control system, allowing your plants to thrive in an optimal, consistent environment, 24/7.
Beyond the Basics: Advanced Automation and Robotics
For truly large-scale or specialized operations, automation goes even further, mimicking human tasks with robotic precision.
Automated Seeding and Transplanting: Robotic arms or conveyor systems can automate the delicate process of seeding and transplanting young seedlings into their hydroponic systems, significantly reducing labor and improving consistency.
Automated Harvesting: For certain crops like leafy greens, robotic harvesting systems can precisely cut and collect mature plants, streamlining post-harvest processing.
Automated Internal Logistics: Conveyor belts, autonomous guided vehicles (AGVs), or overhead rail systems can transport plants from propagation to grow areas, and then to packing, minimizing manual handling and risk of damage.
Data-Driven Decision Making at Scale: Large commercial hydroponic greenhouses collect terabytes of data. This data feeds into advanced analytical platforms that can identify patterns, optimize energy consumption, predict disease outbreaks, and even suggest improvements to nutrient formulations or environmental setpoints. This constant feedback loop drives continuous improvement and maximizes profitability.
The Advantages of Automation: Why It's a Game-Changer
Automated management isn't just a cool feature; it's fundamental to the success of modern hydroponic greenhouses.
Precision and Consistency: Automated systems maintain environmental parameters with far greater accuracy and consistency than manual control. This leads to predictable growth, higher yields, and superior crop quality.
Labor Efficiency: Automation drastically reduces the need for manual labor, especially for routine tasks like watering, nutrient adjustments, and climate control. This lowers operational costs and frees up staff for more specialized tasks.
Resource Optimization: Automated systems precisely manage water, nutrients, and energy. This minimizes waste, leading to significant savings and a more sustainable operation.
Reduced Risk: Consistent environmental control reduces plant stress, leading to healthier plants less susceptible to pests and diseases. Early detection through sensors can also prevent outbreaks.
Scalability: Automation makes it easier to scale up operations without proportionally increasing labor costs, allowing businesses to grow efficiently.
Year-Round Production: By overcoming external climate limitations, automation enables consistent, year-round production, ensuring a steady supply for the market and stable revenue streams.
The journey towards fully autonomous greenhouses is ongoing, but the advancements in sensors, AI, and robotics are already transforming agriculture. These intelligent systems empower growers to cultivate high-quality produce efficiently, sustainably, and profitably, truly bringing the farm of the future to life.
